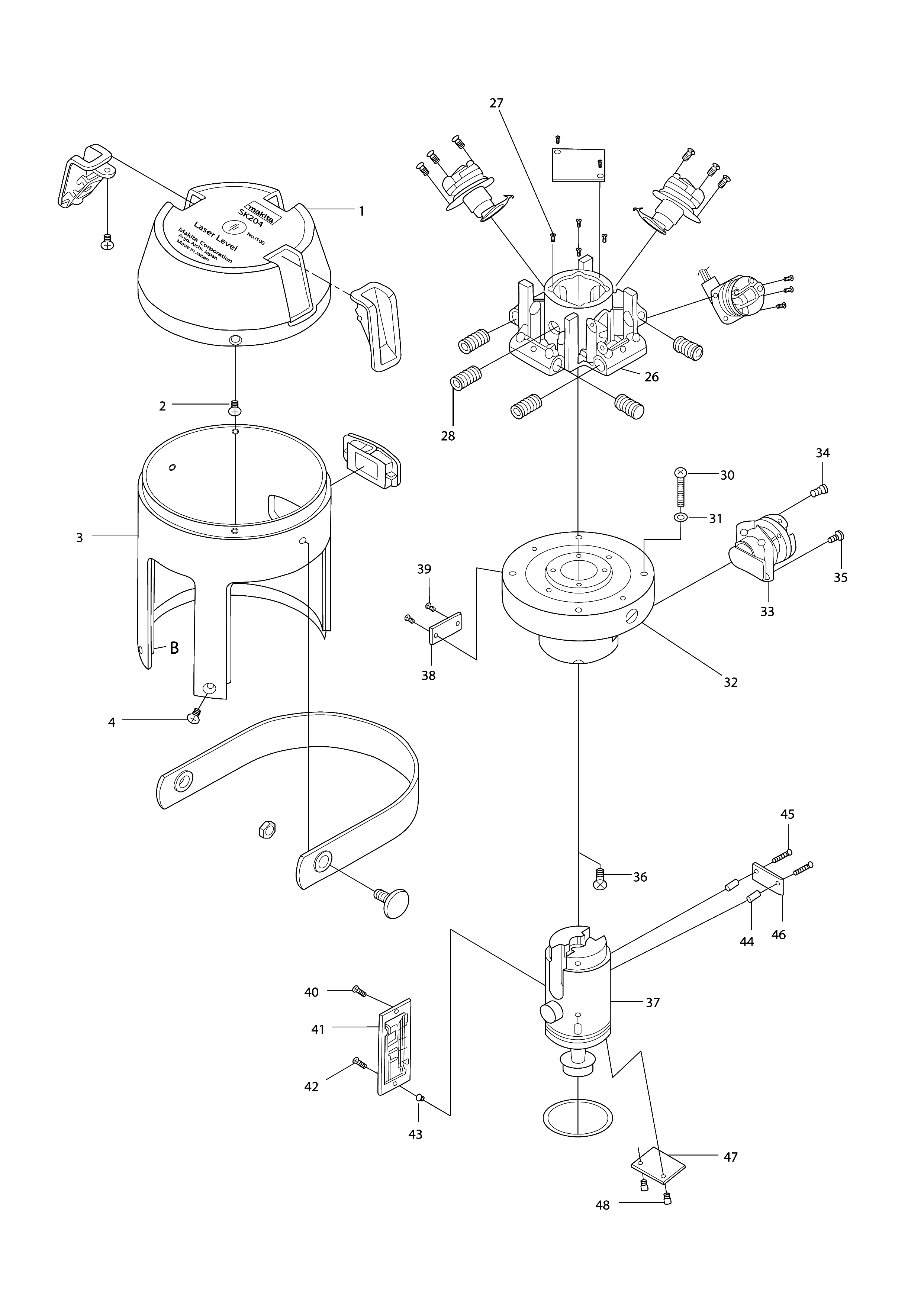

SK204 CORDLESS LASER LEVEL

Numer	Nazwa	Cena
001	TKLV5289EA TOP CAP ASS'Y(INC.C10-C30)		-
001-C10	TKLV5289ES TOP CAP COMP.		-
001-C11	TKL5288E2S TOP CAP COMP.		-
001-C20	TK0LV5069S VERTICAL EXIT FRAME COMP.		-
001-C30	TK000P2540 PAN HD.SCREW M2.5X4		-
001-C31	TKP2540SCZ PAN HD.SCREW M2.5X4		-
003	TKLV5023EA BODY HOUSING ASS'Y INC.C10-C30		-
003-C10	TK0LV5070S HORIZONTAL EXIT FRAME COMP.		-
003-C20	TK0LV5023E BODY HOUSING		-
003-C30	TK0LV4270S TOOL-STRAP		-
004	TK0C3060SS OVAL COUNTERSUNK HD.SCREW M3X6		-
005	TK0LV5053S BASE COMP.		-
008	TK00LV5056 WIRE COVER		-
009	TK03P2030B PAN HD.SCREW M2X3		-
010	TKLV5048EA POWER/MODE PANEL COMP.		-
012	TKLV39702S BATTERY BOX COMP.		-
014	TK0LV39712 BATTERY BOX COVER		-
015	TKLV50573S YOKE COMP.		-
016	TK0P3060SS PAN HD.SCREW M3X6		-
017	TK00LV5059 CONTROL PLATE		-
018	TK00LV1933 RING NUT		-
019	TK0LV5061S OUTER FRAME COMP.		-
020	TK0000WW40 WAVE WASHER M4		-
020-1	TK00WW40SS WAVE WASHER M4		-
021	TK0LV5074S FOOT COMP		-
022	TK0H4014SS HEX.SOCKET HD.CAP SCREW M4X14		-
023	TK00LV5065 RETAINING RING		-
024	TK0LV5068S BOTTOM FRAME COMP.		-
025	TK00C3060B OVAL COUNTERSUNK HD.SCREW M3X6		-
025-1	TKC3060SSB OVAL COUNTERSUNK HD.SCREW M3X6		-
026	TK0LV5477A VERTICAL LASER-UNIT ASS'Y		-
026-C10	TK0LV5452S VERTICAL LASER HEAD COMP.		-
027	TK000F2550 COUNTERSUNK HD.SCREW M2.5X5		-
027-1	TKF2550SCZ COUNTERSUNK HD.SCREW M2.5X5		-
028-1	TKS8010SS0 HEX.SOCKET HD.SCREW M8X10		-
028A_	TKS8015SS0 HEX.SOCKET HD.SCREW M8X15		-
028B_	TKS8020SS0 HEX.SOCKET HD.SCREW M8X20		-
029	TK00000S80 HEX.SOCKET HD.SCREW M8		-
030	TK000P3020 PAN HD.SCREW M3X20		-
030-1	TKP3020SCU PAN HD.SCREW M3X20		-
031	TK0000SW30 SPRING LOCK WASHER 2 M3		-
031-1	TK0SW30SC2 SPRING LOCK WASHER 2 M3		-
032	TK0LV5040S GIMBAL COMP.		-
033	TK0LV5453S HORIZONTAL LASER HD.COMP.		-
034	TK00LV5575 LASER LINE ADJUSTING SCREW		-
036	TK000F3060 COUNTERSUNK HD.SCREW M3X6		-
036-1	TKF3060SCZ COUNTERSUNK HD.SCREW M3X6		-
037	TK0LV5483A GYRO ASS'Y		-
037-C10	TK0LV5483S GYRO COMP.		-
037-C20	TK0LV5456S PLUMB LASER HD.		-
037-C30	TK0S3080SS HEX.SOCKET SCREW M3X8		-
037-C31	TKS3080SS0 HEX.SOCKET HD.SCREW M3X8		-
037-C40	TK00LV5075 O RING 29		-
038	TK00LV5019 CIRCUIT BOARD(C)		-
040	TK03P2040N PAN HD.SCREW M2X4	1,59 zł z VAT	Dodaj do koszyka
041	TK00LV5465 CONNECTING CIRCUIT BOARD		-
042	TK03P2060N PAN HD.SCREW M2X6	0,28 zł z VAT	Dodaj do koszyka
043	TK00ST2025 SPACER 2X2.5		-
043-1	TKST2025SC SPACER 2X2.5		-
044	TK00ST2090 SPACER 2X9		-
044-1	TKST2090SC SPACER 2X9		-
045	TK000P2012 PAN HD.SCREW M2X12		-
045-1	TKP2012SCB PAN HEAD SCREW M2X12		-
046	TK00LV5463 TRANS.CIRCUIT BOARD		-
047	TK00LV5464 SENSOR CIRCUIT BOARD		-
048	TK0P2050SS PAN HD.SCREW M2X5(SUS)		-
A01	TK02043000 TOOL CARRYING CASE		-
A01-1	TK2040K000 TOOL CARRYING CASE		-
A02	TK02044000 CARTON		-
A02-1	TK0204ECB1 CARTON		-
A03	TK0LEG2000 LASER ENHANCEMENT GLASSES	0,00 zł z VAT	-
A04	TK0LD11001 RECEIVER UNIT		-
A05	TK00LD1027 RECEIVER UNIT CASE		-
A06	TK0LD1630A RECEIVER CLAMP SET		-
